KM-2301-600
1. The combining of extension rods provides a wide measuring range.
2. Supplied with a standard caliper gage for zero setting.
3. Diameter of extension rods: 15.5mm.
4. Accuracy: (3+n+L/50)μm (n=number of rod,L=max measuring length(mm)).
5. Carbide measuring faces.

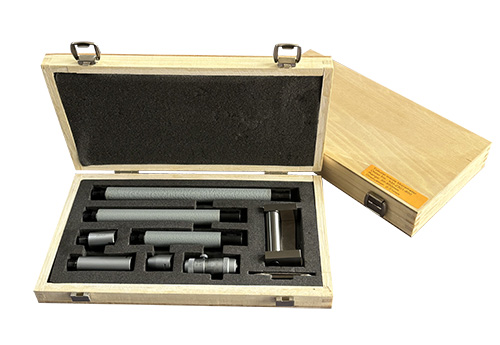

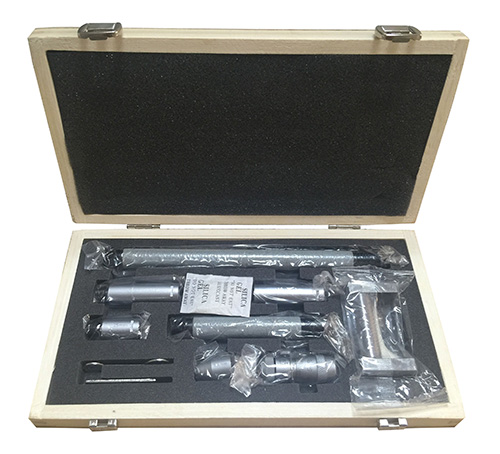

6. Supplied in fitted case.
Specification:
Metric:
|
Order No. |
Measuring Range |
Extension Rods |
|
KM-2301-100 |
50-100mm |
13mm,25mm |
|
KM-2301-150 |
50-150mm |
13mm,25mm,50mm |
|
KM-2301-300 |
50-300mm |
13mm,25mm,50mm(2pcs),100mm |
|
KM-2301-500 |
50-500mm |
13mm,25mm,50mm(2pcs),100mm,200mm |
|
KM-2301-1000 |
50-1000mm |
13mm,25mm,50mm,100mm(2pcs),150mm,200mm,300mm |
|
KM-2301-1500 |
50-1500mm |
13mm,25mm,50mm,100mm(2pcs),150mm,200mm(2pcs),300mm(2pcs) |
|
KM-2301-75 |
50-75mm |
13mm |
|
KM-2301-175 |
50-175mm |
13mm,25mm(2pcs),50mm |
|
KM-2301-250 |
50-250mm |
13mm,25mm,50mm,100mm |
|
KM-2301-600 |
50-600mm |
13mm,25mm,50mm,100mm,150mm,200mm |
Inch:
|
Order No. |
Measuring Range |
Extension Rods |
|
KM-2301-4 |
2-4″ |
0.5″, 1″ |
|
KM-2301-6 |
2-6″ |
0.5″, 1″,2″ |
|
KM-2301-12 |
2-12″ |
0.5″, 1″,2″(2pcs),4″ |
|
KM-2301-20 |
2-20″ |
0.5″, 1″,2″(2pcs),4″,8″ |
|
KM-2301-40 |
2-40″ |
0.5″, 1″,2″,4″(2pcs),6″,8″,12″ |
|
KM-2301-60 |
2-60″ |
0.5″, 1″,2″,4″(2pcs),6″,8″(2pcs),12″(2pcs) |
|
KM-2301-3 |
2-3″ |
0.5″ |
|
KM-2301-7 |
2-7″ |
0.5″, 1″(2pcs),2″ |
|
KM-2301-10 |
2-10″ |
0.5″, 1″,2″,4″ |
|
KM-2301-24 |
2-24″ |
0.5″, 1″,2″,4″,6″,8″ |
