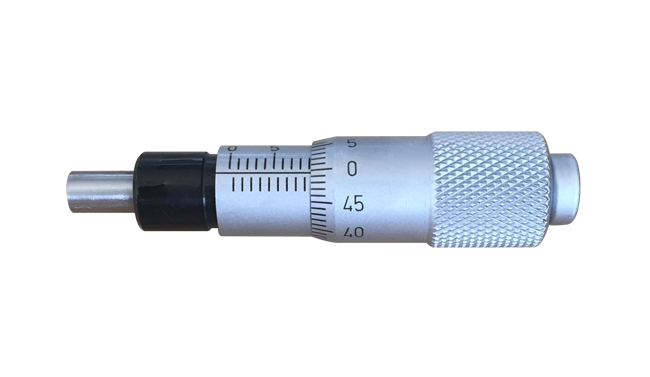

0-13mm
Feature：
1. Graduation: 0.01mm(Metric);0.001''(Inch).
2. Flat measuring face and spherical measuring face as optional.
3. Supplied in the storage case.
Specification:
Common
Metric:
|
Order No. |
Measuring Range |
Graduation |
Accuracy |
Type |
|
|
KM-3907-10 |
0~13mm |
0.01mm |
±0.004mm |
Without spindle lock |
Flat measuring face |
|
KM-3907-20 |
0~13mm |
0.01mm |
±0.004mm |
With spindle lock |
|
|
KM-3907-30 |
0~13mm |
0.01mm |
±0.004mm |
Without spindle lock |
Spherical measuring face |
|
KM-3907-40 |
0~13mm |
0.01mm |
±0.004mm |
With spindle lock |
Inch:
|
Order No. |
Measuring Range |
Graduation |
Accuracy |
Type |
|
|
KM-3907-11 |
0~0.5″ |
0.001'' |
±0.00016″ |
Without spindle lock |
Flat measuring face |
|
KM-3907-21 |
0~0.5″ |
0.001'' |
±0.00016″ |
With spindle lock |
|
|
KM-3907-31 |
0~0.5″ |
0.001'' |
±0.00016″ |
Without spindle lock |
Spherical measuring face |
|
KM-3907-41 |
0~0.5″ |
0.001'' |
±0.00016″ |
With spindle lock |
With installation Nut
Metric:
|
Order No. |
Measuring Range |
Graduation |
Accuracy |
Type |
|
|
KM-3907N-10 |
0~13mm |
0.01mm |
±0.004mm |
Without spindle lock |
Flat measuring face |
|
KM-3907N-20 |
0~13mm |
0.01mm |
±0.004mm |
With spindle lock |
|
|
KM-3907N-30 |
0~13mm |
0.01mm |
±0.004mm |
Without spindle lock |
Spherical measuring face |
|
KM-3907N-40 |
0~13mm |
0.01mm |
±0.004mm |
With spindle lock |
Inch:
|
Order No. |
Measuring Range |
Graduation |
Accuracy |
Type |
|
|
KM-3907N-11 |
0~0.5″ |
0.001'' |
±0.00016″ |
Without spindle lock |
Flat measuring face |
|
KM-3907N-21 |
0~0.5″ |
0.001'' |
±0.00016″ |
With spindle lock |
|
|
KM-3907N-31 |
0~0.5″ |
0.001'' |
±0.00016″ |
Without spindle lock |
Spherical measuring face |
|
KM-3907N-41 |
0~0.5″ |
0.001'' |
±0.00016″ |
With spindle lock |
