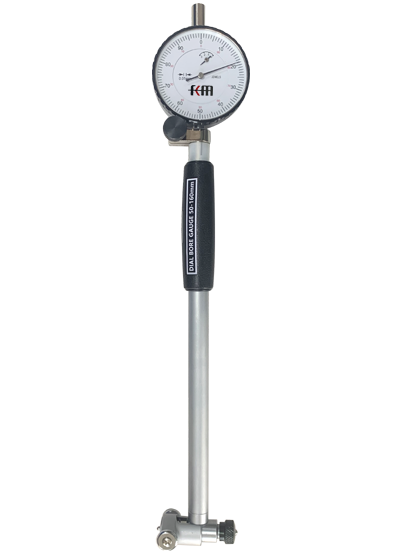

KM-DBI160
Feature：
1. For internal measurement.
2. Wheel guide.
3. With inserting interchangeable anvils.
4. Supplied with 0.01mm or 0.001mm dial indicator.
Specification:
|
Order No. |
Range |
Measuring Depth |
Graduation |
Accessories |
||
|
Anvils |
Washers |
Sub-anvils |
||||
| KM-DBI10 | 6-10mm | 40mm | 0.01mm | 9 |
|
|
| KM-DBI18 | 10-18mm | 100mm | 0.01mm | 9 | 1 |
|
|
KM-DBI35 |
18-35mm |
150mm |
0.01mm |
9 |
2 |
|
|
KM-DBI50 |
35-60mm |
150mm |
0.01mm |
4 |
4 |
|
|
KM-DBI100 |
50-100mm |
150mm |
0.01mm |
11 |
4 |
|
|
KM-DBI160 |
50-160mm |
150mm |
0.01mm |
12 |
4 |
1 |
|
KM-DBI250 |
160-250mm |
250mm |
0.01mm |
5 |
5 |
1 |
|
KM-DBI450 |
250-450mm |
250mm |
0.01mm |
5 |
5 |
2 |
|
KM-DBIS250 |
100-250mm |
200mm |
0.01mm |
5 |
5 |
2 |
|
KM-DBIS800 |
400-800mm |
400mm |
0.01mm |
5 |
5 |
3 |
