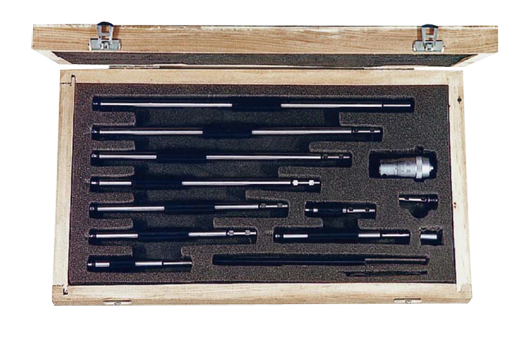

KM-3301-300
Feature：
1. Graduation:0.01mm/0.001″.
2. The interchangeable extension rods provides a wide measuring range.
3.Accuracy: Metric (6+L/50)μm
Inch [0.0003+0.00005(L/2)]″
(L=max measuring length(mm) [inch]).
Specification:
Metric
|
Order No. |
Measuring Range |
Extension Rods |
|
25mmMicrometer head |
||
|
KM-3301-32 |
25-32mm |
Micrometer Head |
|
KM-3301-50 |
25-50mm |
2 |
|
50mmMicrometer Head |
||
|
KM-3301-63 |
50-63mm |
Micrometer Head |
|
KM-3301-200 |
50-200mm |
6 |
|
KM-3301-300 |
50-300mm |
10 |
|
200mmMicrometer Head |
||
|
KM-3301-225 |
200-225mm |
Micrometer Head |
|
KM-3301-500 |
200-500mm |
3 |
|
KM-3301-1000 |
200-1000mm |
8 |
Inch
|
Order No. |
Measuring Range |
Extension Rods |
|
25mmMicrometer head |
||
|
KM-3301-1.2 |
1-1.25″ |
Micrometer Head |
|
KM-3301-2 |
1-2″ |
2 |
|
50mmMicrometer Head |
||
|
KM-3301-2.5 |
2-2.5″ |
Micrometer Head |
|
KM-3301-8 |
2-8″ |
6 |
|
KM-3301-12 |
2-12″ |
10 |
|
200mmMicrometer Head |
||
|
KM-3301-9 |
8-9″ |
Micrometer Head |
|
KM-3301-20 |
8-20″ |
3 |
|
KM-3301-40 |
8-40″ |
8 |
