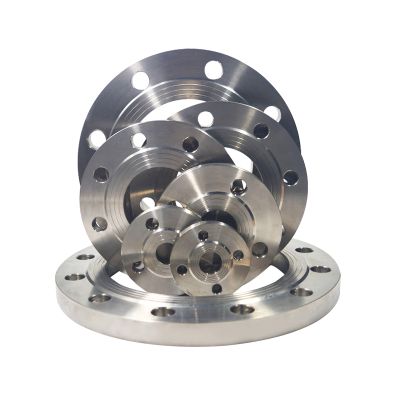

Plate Flat Welding Titanium Flange
Details:
|
Standard |
ASME,JIS,DIN,GB,GOST |
|
Material |
Titanium Gr1, Gr2, Gr4, Grade9, Grade 11 etc. |
|
Size |
DN10-DN2000 |
|
OEM |
Available |
|
Pressure |
PN2.5,PN6, PN10, PN16,PN25, PN40 |
|
Technics |
Forged |
|
Flange surface |
RF,FF |
|
Type |
Plate flat welding flange |
|
Packaging |
Export Standard Wooden case, or can be customized |
|
Application |
Petroleum, chemical, shipbuilding, pharmaceutical, metallurgy, machinery, stamping elbow, food and other
|
Specification:
PN2.5
(mm)
|
Size
DN
|
Outer diameter |
Connection Size |
Flange thickness |
Flange inner diameter |
||||||
|
A |
B |
Flange outer diameterD |
Center circle of bolt hole diameterK |
Bolt hole diameter |
Bolt hole number |
Bolt |
A |
B |
||
|
10 |
17.2 |
14 |
75 |
50 |
11 |
4 |
M10 |
12 |
18 |
15 |
|
15 |
21.3 |
18 |
80 |
55 |
11 |
4 |
M10 |
12 |
22.5 |
19 |
|
20 |
26.9 |
25 |
90 |
65 |
11 |
4 |
M10 |
14 |
27.5 |
26 |
|
25 |
33.7 |
32 |
100 |
75 |
11 |
4 |
M10 |
14 |
34.5 |
33 |
|
32 |
42.4 |
38 |
120 |
90 |
14 |
4 |
M12 |
16 |
43.5 |
39 |
|
40 |
48.3 |
45 |
130 |
100 |
14 |
4 |
M12 |
16 |
49.5 |
46 |
|
50 |
60.3 |
57 |
140 |
110 |
14 |
4 |
M12 |
16 |
61.5 |
59 |
|
65 |
76.1 |
76 |
160 |
130 |
14 |
4 |
M12 |
16 |
77.5 |
78 |
|
80 |
88.9 |
89 |
190 |
150 |
18 |
4 |
M16 |
18 |
90.5 |
91 |
|
100 |
114.3 |
108 |
210 |
170 |
18 |
4 |
M16 |
18 |
116 |
110 |
|
… |
… |
… |
… |
… |
… |
… |
… |
… |
… |
… |
|
2000 |
2032 |
2020 |
2190 |
2130 |
30 |
48 |
M27 |
58 |
2036 |
2024 |
