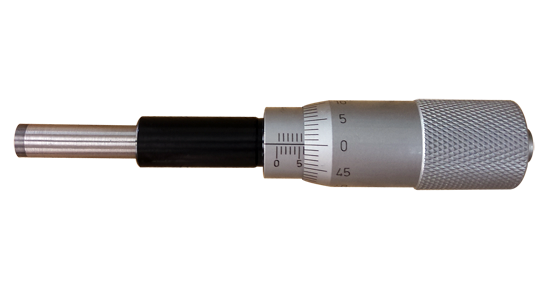

0-25mm
Feature：
1. Graduation: 0.01mmor0.001mm(Metric) or 0.001″ or 0.0001″(Inch) .
2.Carbide tipped measuring face.
3. Supplied in the storage case.
Specification:
Common
Metric:
|
Order No. |
Measuring Range |
Accuracy |
Graduation |
Type |
|
|
KM-3909-10 |
0~25mm |
±0.003mm |
0.01mm |
Flat carbide measuring face |
Without measuring force |
|
KM-3909-20 |
0~25mm |
±0.003mm |
0.01mm |
Spherical carbide measuring face |
|
|
KM-3909-30 |
0~25mm |
±0.003mm |
0.01mm |
Flat carbide measuring face |
Ratchet stop |
|
KM-3909-40 |
0~25mm |
±0.003mm |
0.01mm |
Spherical carbide measuring face |
|
|
KM-3909-50 |
0~25mm |
±0.003mm |
0.001mm |
Flat carbide measuring face |
Without measuring force |
|
KM-3909-60 |
0~25mm |
±0.003mm |
0.001mm |
Spherical carbide measuring face |
|
|
KM-3909-70 |
0~25mm |
±0.003mm |
0.001mm |
Flat carbide measuring face |
Ratchet stop |
|
KM-3909-80 |
0~25mm |
±0.003mm |
0.001mm |
Spherical carbide measuring face |
|
Inch:
|
Order No. |
Measuring Range |
Accuracy |
Graduation |
Type |
|
|
KM-3909-11 |
0~1″ |
±0.00012″ |
0.001″ |
Flat carbide measuring face |
Without measuring force |
|
KM-3909-21 |
0~1″ |
±0.00012″ |
0.001″ |
Spherical carbide measuring face |
|
|
KM-3909-31 |
0~1″ |
±0.00012″ |
0.001″ |
Flat carbide measuring face |
Ratchet stop |
|
KM-3909-41 |
0~1″ |
±0.00012″ |
0.001″ |
Spherical carbide measuring face |
|
|
KM-3909-51 |
0~1″ |
±0.00012″ |
0.0001″ |
Flat carbide measuring face |
Without measuring force |
|
KM-3909-61 |
0~1″ |
±0.00012″ |
0.0001″ |
Spherical carbide measuring face |
|
|
KM-3909-71 |
0~1″ |
±0.00012″ |
0.0001″ |
Flat carbide measuring face |
Ratchet stop |
|
KM-3909-81 |
0~1″ |
±0.00012″ |
0.0001″ |
Spherical carbide measuring face |
|
With Installation Nut
Metric:
|
Order No. |
Measuring Range |
Accuracy |
Graduation |
Type |
|
|
KM-3909N-10 |
0~25mm |
±0.003mm |
0.01mm |
Flat carbide measuring face |
Without measuring force |
|
KM-3909N-20 |
0~25mm |
±0.003mm |
0.01mm |
Spherical carbide measuring face |
|
|
KM-3909N-30 |
0~25mm |
±0.003mm |
0.01mm |
Flat carbide measuring face |
Ratchet stop |
|
KM-3909N-40 |
0~25mm |
±0.003mm |
0.01mm |
Spherical carbide measuring face |
|
|
KM-3909N-50 |
0~25mm |
±0.003mm |
0.001mm |
Flat carbide measuring face |
Without measuring force |
|
KM-3909N-60 |
0~25mm |
±0.003mm |
0.001mm |
Spherical carbide measuring face |
|
|
KM-3909N-70 |
0~25mm |
±0.003mm |
0.001mm |
Flat carbide measuring face |
Ratchet stop |
|
KM-3909N-80 |
0~25mm |
±0.003mm |
0.001mm |
Spherical carbide measuring face |
|
Inch:
|
Order No. |
Measuring Range |
Accuracy |
Graduation |
Type |
|
|
KM-3909N-11 |
0~1″ |
±0.00012″ |
0.001″ |
Flat carbide measuring face |
Without measuring force |
|
KM-3909N-21 |
0~1″ |
±0.00012″ |
0.001″ |
Spherical carbide measuring face |
|
|
KM-3909N-31 |
0~1″ |
±0.00012″ |
0.001″ |
Flat carbide measuring face |
Ratchet stop |
|
KM-3909N-41 |
0~1″ |
±0.00012″ |
0.001″ |
Spherical carbide measuring face |
|
|
KM-3909N-51 |
0~1″ |
±0.00012″ |
0.0001″ |
Flat carbide measuring face |
Without measuring force |
|
KM-3909N-61 |
0~1″ |
±0.00012″ |
0.0001″ |
Spherical carbide measuring face |
|
|
KM-3909N-71 |
0~1″ |
±0.00012″ |
0.0001″ |
Flat carbide measuring face |
Ratchet stop |
|
KM-3909N-81 |
0~1″ |
±0.00012″ |
0.0001″ |
Spherical carbide measuring face |
|
