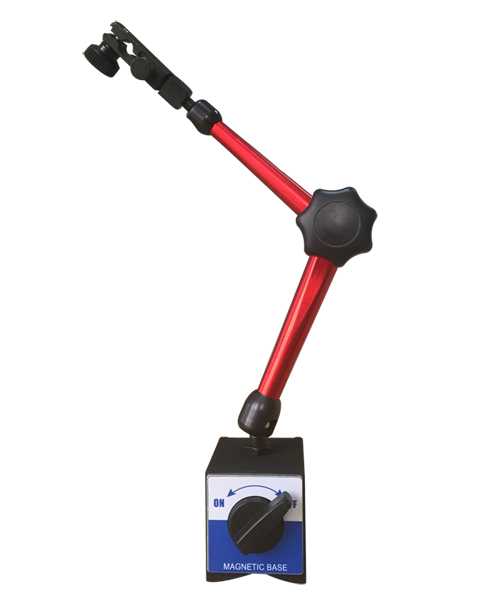

KM-606-01



Feature：

1.Mechanical universal type.

2. Magnetic base with ON/OFF switch.

3. All arm is aluminum alloy.

4. Dovetail groove for test indicators.

5. Clamp hole8mm(optional hole 3/8’’)

6. Overall stem length:290mm.

7. Tapped hole: M8×1.25mm.

Specification:

Order No.	Magnetic Force	Applicable Holding Stem Dia.	Base(L×W×H)
KM-606-01	80kg	?8mm, 3/8’’	60×50×55mm
